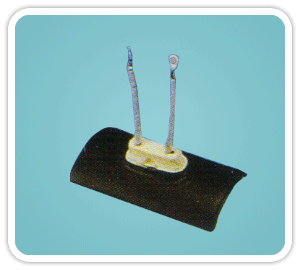

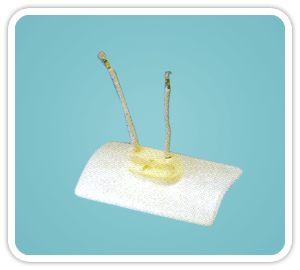

HalF
Trough Elements ( Type MH 120mm L x 60mm W) |
| |
黑色 |
白色 |
Catalogue
No. |
Wattage
|
Volts |
MHB125 |
125 |
220/240 |
MHB150 |
150 |
220/240 |
MHB200 |
200 |
220/240 |
MHB250 |
250 |
220/240 |
MHB325 |
325 |
220/240 |
MHB375 |
375 |
220/240 |
MHB500 |
500 |
220/240 |
|
Catalogue
No. |
Wattage
|
Volts |
MHW125 |
125 |
220/240 |
MHW150 |
150 |
220/240 |
MHW200 |
200 |
220/240 |
MHW250 |
250 |
220/240 |
MHW325 |
325 |
220/240 |
MHW375 |
375 |
220/240 |
MHW500 |
500 |
220/240 |
|
|
|

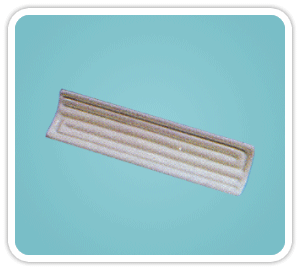

Full
Trough Elements ( Type MF 240mm L x 60mm W) |
| |
黑色 |
白色 |
Catalogue
No. |
Wattage
|
Volts |
MFB150 |
150 |
220/240 |
MFB250 |
250 |
220/240 |
MFB300 |
300 |
220/240 |
MFB400 |
400 |
220/240 |
MFB500 |
500 |
220/240 |
MFB650 |
650 |
220/240 |
MFB750 |
750 |
220/240 |
MFB1000 |
1000 |
|
|
Catalogue
No. |
Wattage
|
Volts |
MFW150 |
150 |
220/240 |
MFW250 |
250 |
220/240 |
MFW300 |
300 |
220/240 |
MFW400 |
400 |
220/240 |
MFW500 |
500 |
220/240 |
MFW650 |
650 |
220/240 |
MFW750 |
750 |
220/240 |
MFW1000 |
1000 |
|
|
|
|

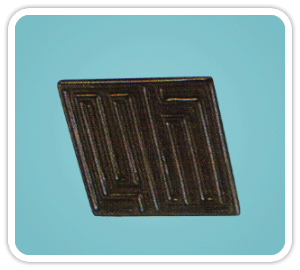

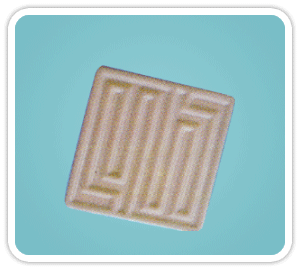

Plane
and Square Elements ( Type MP 120mm L x 120mm W) |
| |
黑色 |
白色 |
Catalogue
No. |
Wattage
|
Volts |
MPB250 |
250 |
220/240 |
MPB400 |
400 |
220/240 |
MPB650 |
650 |
220/240 |
MPB800 |
800 |
220/240 |
|
Catalogue
No. |
Wattage
|
Volts |
MPW250 |
250 |
220/240 |
MPW400 |
400 |
220/240 |
MPW650 |
650 |
220/240 |
MPW800 |
800 |
220/240 |
|
|
|

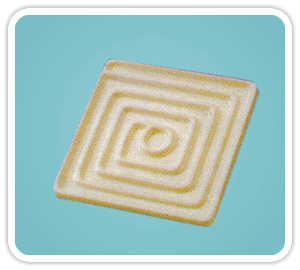

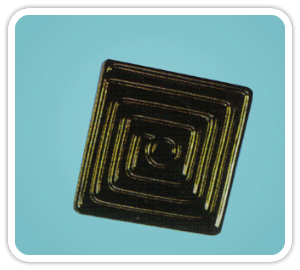

Square
Elements ( Type MS 120mm L x 120mm W) |
| |
黑色 |
白色 |
Catalogue
No. |
Wattage
|
Volts |
MSB250 |
250 |
220/240 |
MSB400 |
400 |
220/240 |
MSB650 |
650 |
220/240 |
MSB800 |
800 |
220/240 |
MSB1000 |
1000 |
220/240 |
|
Catalogue
No. |
Wattage
|
Volts |
MSW250 |
250 |
220/240 |
MSW400 |
400 |
220/240 |
MSW650 |
650 |
220/240 |
MSW800 |
800 |
220/240 |
MSW1000 |
1000 |
220/240 |
|
|
| |
*380V are available for the above
types
*Accurancy: Length (±2%) Wattage (±5%) |
| |
|
